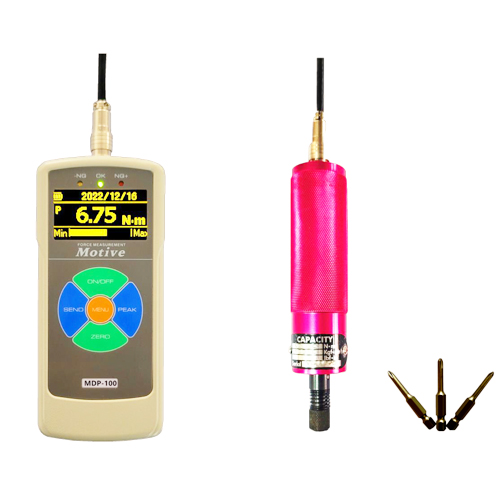

Product name: MDP SERFIES DIGITAL TORQUE SCREWSRIVERS
Category: ATTONIC Product model: MDP
1.Video Presentation
2.Characteristics
◆Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
◆Ergonomic design, heavy metal construction
◆The bearing support of the measuring shaft is used to increase the reliability of the measurement
◆The instrument can store 1000 data and can be imported into a computer
◆Measurement units Lbf.in, kgf.cm, N.m N.cm are available
◆The built-in real-time clock displays the real-time time and date
◆1.0 to 60 seconds Auto clear or set manual clear
◆The real-time progress bar is displayed
◆Wireless WiFi communication, data upload database, mes management(customized)
3.Technical Parameter
| Accuracy | ±1% | |
| Display | OLED screen Luminescent OLED display is highly visible in dark locations | |
| Mode of measurement | PEAK | Torsion maximum |
| TRACK | Torque change real-time display of torque value | |
| Upper and lower limit determination function | Set the highest and lowest values measured within the limits | |
| Storage capacity | 1000 pieces of data | |
| Automatic shutdown | Configurable (5,10,30,60 minutes) | |
| Automatic clearance time | Can be set (0.5, 1,2,3,5,8,10 S) to automatically clear the measured value | |
| Output of data | Wired: USB WiFi (Custom) | |
| Battery | Lithium battery 1.2V*3 rechargeable battery (3000mAh) | |
| Charge time/continuous use time | 4 hours/more than 12 hours of continuous | |
| Power | AC adapter (6V 1.2A) | |

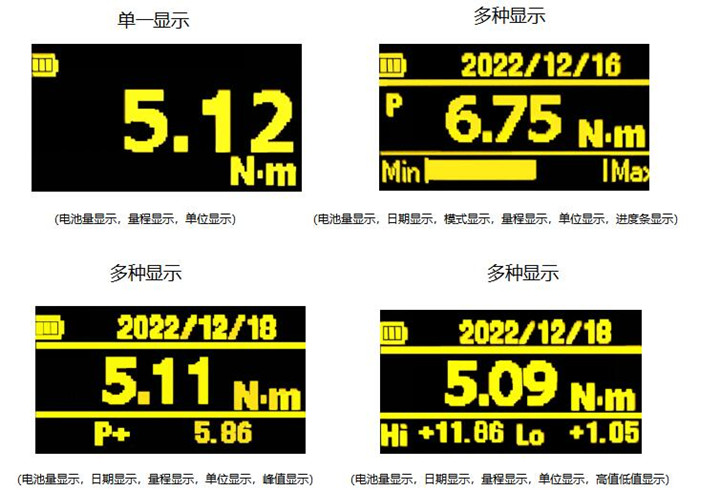

4.Display Description

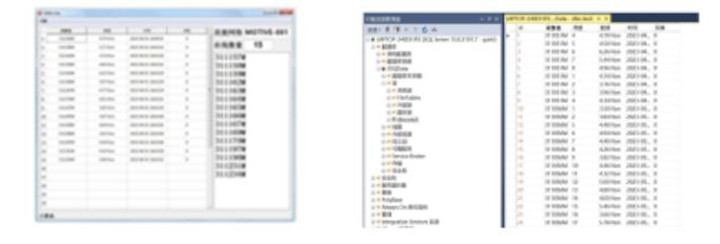

MES data sheet
Software connection curve display
5.Parameter
| MODEL | MAX.LOAD | MIN.LOAD | ||||
| Kgf.cm | N.m | Lbf.in | Kgf.cmN.m | N.m | Lbf.in | |
| MDP-5 | 5.000 | 0.500 | 4.340 | 0.001 | 0.001 | 0.01 |
| MDP-10 | 10.00 | 1.000 | 8.680 | 0.001 | 0.001 | 0.01 |
| MDP-20 | 20.00 | 2.000 | 17.36 | 0.001 | 0.001 | 0.01 |
| MDP-50 | 50.00 | 5.000 | 43.40 | 0.001 | 0.01 | 0.01 |
| MDP-100 | 100.0 | 10.00 | 86.80 | 0.01 | 0.01 | 0.01 |
| MDP-200 | 200.0 | 20.00 | 173.6 | 0.01 | 0.01 | 0.01 |
6.Instrument Dimensions

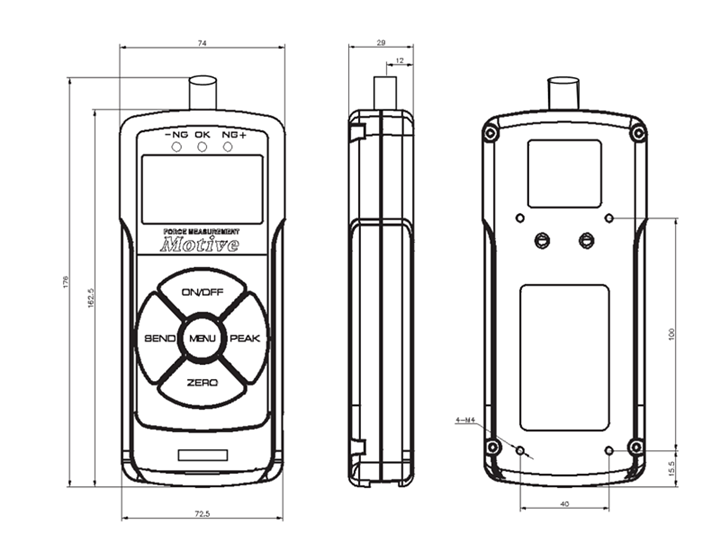

Main engine size

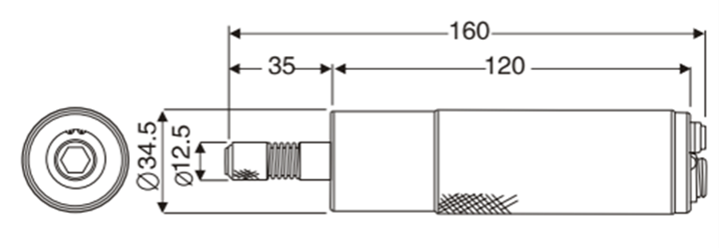

Handle size
